The nation of tomorrow, as we see our country, will be witness to development all around — and infrastructure will be at the core of it. Steel, by virtue of offering the widest range of strength among metals will play a pivotal role in the construction boom which will be at the core of this infrastructure push.
At MSP Steel, we have always tried to envisage the need of the future and our Research and Development team at our Integrated Steel Plant in Raigarh have gathered all resources to come up with a product that is future ready.

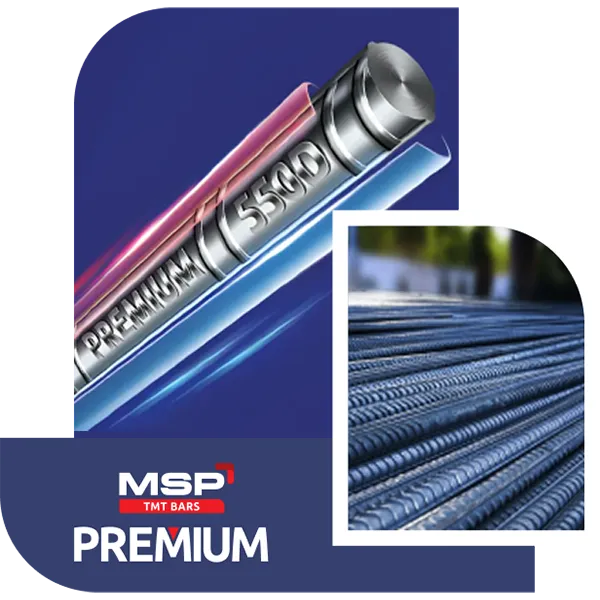

Presenting MSP Premium TMT Bars — the truly Sarvagunn Sampann product from the house of MSP Steel.With the perfect balance of strength and flexibility, an equi-spaced rib pattern, and a consistent weight-to-length ratio, MSP Premium TMT Bars help reduce steel consumption, labour costs, and construction time, resulting in significant overall cost savings.Adding to this are the superior product finish, bend wraps, and colour-coated end cuts, making MSP Premium TMT Bars a future-ready choice for modern construction — the raw material for the shining nation of tomorrow.
BENEFITS
PERFECT BALANCE OF STRENGTH AND FLEXIBILITY
Made from Prime Steel billets using a controlled process to optimize all constituents, MSP Premium TMT Bars consistently exhibit a Yield Strength of 570 N/mm2 min and a Tensile Strength of 630 N/mm2 min which is a significant upgrade on the present range of 500D Grade TMT Bars available in the market. Adding to this, the percentage elongation of 18 min and a UTS/YS ratio in the range of 1.10 to 1.20 results in optimum flexibility for the rebars thereby enabling MSP PREMIUM TMT BARS to offer the perfect combination of strength and flexibility.

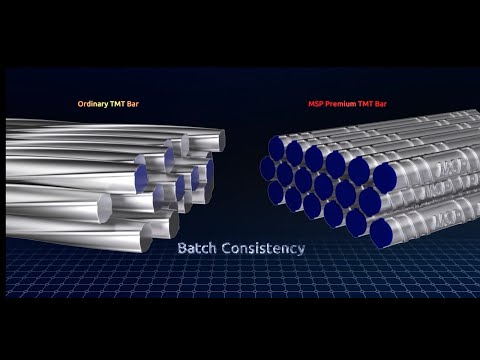

CONSISTENCY IN WEIGHT AND LENGTH
A controlled and monitored production process ensures consistent adherence to the defined sectional weight range of respective sections for MSP Premium TMT Bars as per the IS 1786 grade.
This helps contractor partners in getting batch consistency and uniform sectional weight across all construction units thereby adding up to optimum and uniform construction metrics with superior durability of structures.
SUPERIOR SHINE AND FINISH
MSP Premium TMT Bars come with a best in category shine and finish. The production line embellished by controlled treatment of ultra clean water of balanced pH value ensures the physical lusture in each and every unit of MSP Premium TMT Bars. Added to this are the color coated end cuts and poly wrap at the bends that ensures a protective shield of retention to preserve the superior shine and finish.
EQUISPACE RIB PATTERN
The consistent and standard rib area (mm2/mm) metrics of MSP PREMIUM TMT Bars ensures an interlock bonding with the concrete thereby ensuring superior stability to the construction area. The equispace pattern ensures optimum concrete grip surface thus aiding in realizing the optimum load bearing capacity of the construction.
COST SAVINGS UP TO 8%
MSP Premium TMT Bars with its superiority benchmarked against Fe500D Grade of steel exhibits higher load bearing capacity while maintaining the same ductility as per BIS 1786. Higher load bearing capacity leads to either a lesser number of rebars required in total or usage of rebars with lesser diameter thereby decreasing the congestion of rebars and aiding load bearing balance, strength and bonding, overall resulting in significant savings in construction cost.
STATISTICAL CONFORMITY
Mechanical Properties
Properties
Grade Fe 550D
MSP Premium TMT Re-Bar
Yield Stress (N/mm2)
550 min
570 min
Tensile Strength (N/mm2)
600 min
630 min
% Elongation
14.5 min
18 min
% Total Elongation
5 min
7 to 10
UTS / YS Ratio
1.08 min
1.10 to 1.20
| Mechanical Properties | |||
| Properties | Grade Fe 550D | MSP Premium TMT Re-Bar | |
| Yield Stress (N/mm2) | 550 min | 570 min | |
| Tensile Strength (N/mm2) | 600 min | 630 min | |
| % Elongation | 14.5 min | 18 min | |
| % Total Elongation | 5 min | 7 to 10 | |
| UTS / YS Ratio | 1.08 min | 1.10 to 1.20 | |
Sectional Weight (Kg/mt)
Diameter (mm)
MSP Premium TMT Re-Bar
8 mm
0.36 to 0.39
10 mm
0.57 to 0.61
12 mm
0.84 to 0.88
16 mm
1.53 to 1.6
20 mm
2.43 to 2.48
25 mm
3.75 to 3.9
32 mm
6.12 to 6.35
| Sectional Weight (Kg/mt) | |||
| Diameter (mm) | MSP Premium TMT Re-Bar | ||
| 8 mm | 0.36 to 0.39 | ||
| 10 mm | 0.57 to 0.61 | ||
| 12 mm | 0.84 to 0.88 | ||
| 16 mm | 1.53 to 1.6 | ||
| 20 mm | 2.43 to 2.48 | ||
| 25 mm | 3.75 to 3.9 | ||
| 32 mm | 6.12 to 6.35 | ||
Finished Condition
Parameters
MSP Premium TMT Re-Bar
Tagging
Tagging with QR Code
Wrapping
Wrapping with protective poly adhesive tape
Colour Coding
Protective color coating on end cuts
End Cutting
Smooth and uniform for better handling
Shine/Brightness
Superior (By controlled treatment with
ultra-clean water of balanced pH value)
Finishing
Superior finishing
Bundling
As per customer requirement
Rib Pattern
(for Bonding)
BIS approved equi-space rib pattern
for better bonding with concrete
| Finished Condition | |||
| Parameters | MSP Premium TMT Re-Bar | ||
| Tagging | Tagging with QR Code | ||
| Wrapping | Wrapping with protective poly adhesive tape | ||
| Colour Coding | Protective color coating on end cuts | ||
| End Cutting | Smooth and uniform for better handling | ||
| Shine/Brightness | Superior (By controlled treatment with ultra-clean water of balanced pH value) | ||
| Finishing | Superior finishing | ||
| Bundling | As per customer requirement | ||
| Rib Pattern (for Bonding) | BIS approved equi-space rib pattern for better bonding with concrete | ||
Rib Area (mm2/mm)
Diameter (mm)
Grade Fe 550D
MSP Premium TMT Re-Bar
8 mm
0.96
1.40 - 1.52
10 mm
1.20
2.02 - 2.15
12 mm
1.80
2.44 - 2.60
16 mm
2.40
3.52 - 3.62
20 mm
3.40
4.50 - 4.67
25 mm
4.25
5.62 - 5.85
32 mm
5.44
6.70 - 7.30
| Rib Area (mm2/mm) | |||
| Diameter (mm) | Grade Fe 550D | MSP Premium TMT Re-Bar | |
| 8 mm | 0.96 | 1.40 - 1.52 | |
| 10 mm | 1.20 | 2.02 - 2.15 | |
| 12 mm | 1.80 | 2.44 - 2.60 | |
| 16 mm | 2.40 | 3.52 - 3.62 | |
| 20 mm | 3.40 | 4.50 - 4.67 | |
| 25 mm | 4.25 | 5.62 - 5.85 | |
| 32 mm | 5.44 | 6.70 - 7.30 | |
Chemical Composition
Elements
Grade Fe 550 D
MSP Premium TMT Re-Bar
%C
0.25 max
0.14 to 0.22
%S
0.040 max
0.040 max
%P
0.040 max
0.040 max
%S+P
0.075 max
0.075 max
| Chemical Composition | |||
| Elements | Grade Fe 550 D | MSP Premium TMT Re-Bar | |
| %C | 0.25 max | 0.14 to 0.22 | |
| %S | 0.040 max | 0.040 max | |
| %P | 0.040 max | 0.040 max | |
| %S+P | 0.075 max | 0.075 max | |

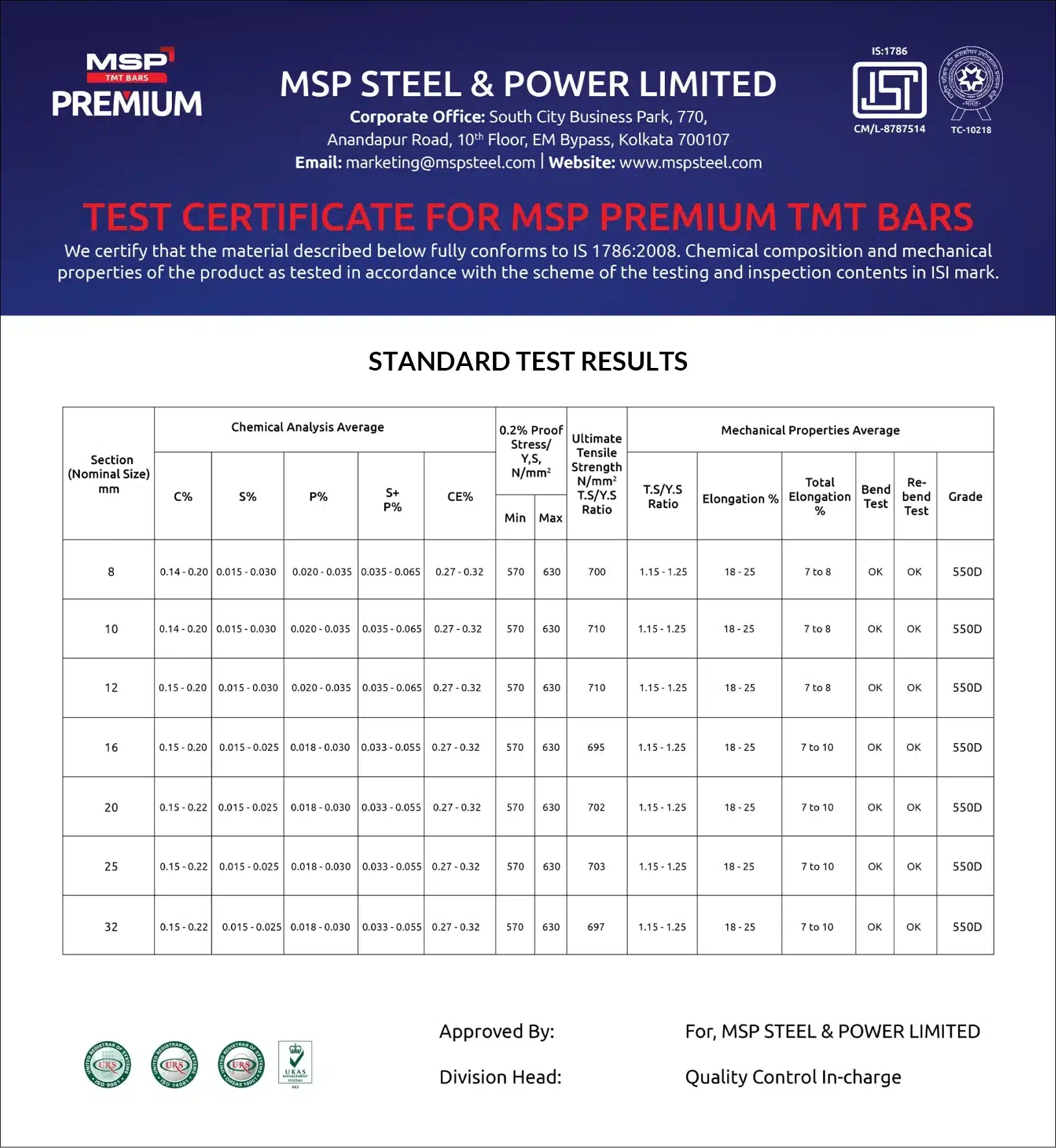

TEST CERTIFICATES
"Each batch of MSP Premium TMT Bars comes with a Test Certificate outlining all physical and chemical parameters of the product batch. These parameters are certified by the NABL accredited laboratory at our Raigarh works..."
PROPERTIES
High Grade Strength
Manufactured using a controlled process to optimize all constituents from best in class Steel billets, MSP Premium TMT Bars consistently exhibit a Yield Strength of 570 N/mm2 min and a Tensile Strength of 630 N/mm2 min � a significant upgrade over the current 500D range of TMT Bars available in the market.
Optimum Flexibility
A percentage elongation of 18 min and a UTS/YS ratio in the range of 1.10 to 1.20 leads to optimum flexibility in the MSP Premium range of TMT Bars.
Consistent Weight
A stringent set of controls and monitoring systems to oversee the production process ensure consistent adherence to the defined sectional weight range of respective sections for MSP Premium TMT Bars as per IS 1786 norms.
Superior shine and finish
A state-of-the-art new production line, enhanced by the controlled treatment of ultra-clean water with a balanced pH value, ensures the physical lustre of each unit of MSP Premium TMT Bar, giving the bars a best-in-class superior shine and finish.
Corrosion Resistance
Controlled water-cooling prevents the formation of coarse carbides, which are the main cause of the corrosive nature of common TMT bars.

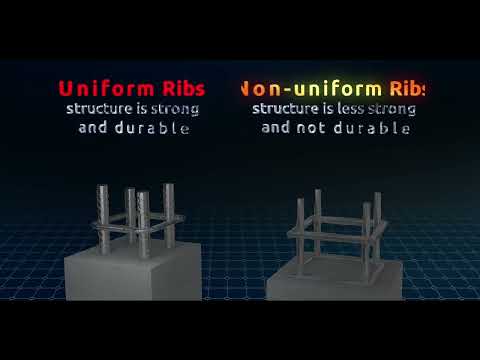

Distinct Rib pattern
MSP PREMIUM TMT Bars exhibit a standard rib area (mm2/mm) spacing, which is diligently monitored batch-wise against stringent standards by the Quality teams.
Cost savings up to 8%
Compared to ordinary-grade TMT bars, MSP Premium TMT Bars, with their superior Fe550D grade of steel, offer significant savings in construction costs.
Better Metallurgical Properties
An end-to-end controlled manufacturing process with optimal process control systems ensures superior metallurgical properties.
Perfect Roundness
Tensionless rolling through the automatic loop scanner system ensures consistent, uniform properties and a precise round shape.
Earthquake Resistance
MSP Premium TMT Bars exhibit significantly high fatigue resistance to dynamic and seismic loads due to their high degree of ductility.
Fire Resistance
Because of their high thermal stability, MSP Premium TMT Bars are the right choice for use in high-temperature applications (400°C – 600°C).
QUALITY CONTROL
High-tech computer aided testing facilities in our NABL certified laboratory at our Integrated Steel Plant in Raigarh is used to carry out all the necessary quality checks,thereby ensuring standardisation of all product batches as per BIS 550D Grade specified quality parameters.
This is a 3 stage process involving checking and grading of raw materials, in-process quality checks and batch testing of finished products.
A rigorous Quality Management System conforming to ISO 9001:2015 standards help us maintain a benchmark in production quality. We are equally committed to the environment and hence comply with Environment Management Norms (14001:2015). Our workforce dedicatedly follows the Health & Safety Management System (45001:2018), creating an innocuous working environment for all.
PROMOTIONS

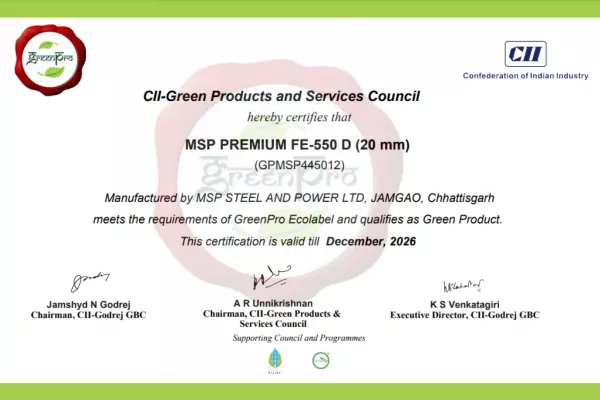

GREEN PRO CERTIFICATION
CLIENTELE
MSP TMT bars have been associated over 1000 channel partners and 2500 influencers catering to the making of over 5 lac 'Sapno Ka Ghar'. Due to our policy of Zero Tolerance towards Quality standards, MSP TMT Bars are the preferred choice of customers across countless infrastructural projects thereby contributing to building the nation of tomorrow. Some of our key clients include:
TESTIMONIALS
Coming Soon
GRIHA NIRMAAN
With a vision to enable home builders build their dream homes, MSP Griha Nirman is committed to elevate the lifetime experience of the home building journey thereby creating spaces that blend aesthetics, functionality, and sustainability.
FAQs
1. What grade are MSP Premium TMT Bars available in?
MSP Premium TMT Bars are available in Fe550D grade, offering high yield strength, superior tensile strength, and enhanced elongation for reliable construction performance.
2. Are MSP Premium TMT Bars BIS certified?
Yes, MSP Premium TMT Bars are manufactured in accordance with BIS IS 1786 standards, ensuring quality, consistency, and reliable mechanical properties.
3. What are the key mechanical properties of MSP Premium TMT Bars?
MSP Premium TMT Bars offer: 1.Minimum Yield Strength: 570 N/mm² 2.Minimum Tensile Strength: 630 N/mm² 3.Minimum Elongation: 18% 4.UTS/YS Ratio: 1.10–1.20 These properties help provide superior strength and ductility.
4. How do MSP Premium TMT Bars provide better strength?
MSP Premium TMT Bars are manufactured using advanced steelmaking and rolling processes, helping achieve superior tensile strength, better load-bearing capability, and improved structural performance.
5. Are MSP Premium TMT Bars corrosion resistant?
Yes, MSP Premium TMT Bars are designed with enhanced corrosion resistance properties, making them suitable for challenging environmental conditions and long-term structural applications.
6. How do MSP Premium TMT Bars improve earthquake resistance?
MSP Premium TMT Bars offer higher elongation and an optimized UTS/YS ratio, helping structures absorb stress more effectively and improving structural flexibility during seismic conditions.
7. Are MSP Premium TMT Bars suitable for welding applications?
Yes, MSP Premium TMT Bars offer good weldability due to their controlled chemical composition, helping ensure ease of fabrication and construction.
8. What makes MSP Premium TMT Bars reliable for construction?
MSP Premium TMT Bars combine superior strength, ductility, corrosion resistance, and BIS-compliant manufacturing standards to deliver reliable structural performance.
9. How do MSP Premium TMT Bars provide better bonding with concrete?
MSP Premium TMT Bars feature BIS-approved equi-space rib patterns that help improve bonding strength with concrete for enhanced structural stability.
10. What premium finishing features are available in MSP Premium TMT Bars?
MSP Premium TMT Bars are available with:
1. QR code tagging
2. Protective wrapping
3. Color-coated end cuts
4. Smooth and uniform finishing
5. Superior bundling and handling features
