PROPERTIES
PHYSICAL PROPERTIES
Physical properties of structural steel, as detailed by cl.2.2.4.1 of IS 800:2007, irrespective of its grade applies to MSP Structural sections as well. They may categorised as:
- Unit mass of steel, p = 7850 kg/m3
- Modulus of elasticity, E = 2.0x105 N/mm2 (MPa)
- Poisson ratio, p = 0.3
- Modulus of rigidity, G = 0.769x105 N/mm2 (MPa)
- Coefficient of thermal expansion cx=12x10 -6/0C
MECHANICAL PROPERTIES
The principal mechanical properties of structural steel, as detailed by the code IS 800:2007 in cl. 2.2.4.2, applicable to MSP Structural sections are
- The yield stress, f y
- The tensile or ultimate stress, fu
- The maximum percent elongation on a standard gauge length and notch toughness.
- Except for notch toughness, the other properties are determined by conducting tensile tests on samples cut from finished goods in accordance with IS 1608.
ADVANTAGES
Our wide range of BIS certified Structural Steel With its nationwide availability are used in multiple segments- domestic. agricultural. industrial & infrastructural. A state-of-the-art manufacturing facility and strict quality control measures hold the promise of quality products catering to various economic segments thereby laying the foundation for the nation of tomorrow.
Widest range of products
Product range includes Angles, Channels, H-Beams, I-Beams, Round Bars and Dowel Bars which are made of multiple standard specs and sizes as well as cut to length and customized sizes as per customer requirements.
Higher load carrying capacity
Due to exceptional sectional attributes, MSP structural steel sections have superior strength to weight ratio which is useful for all kinds of constructions.
NABL certified testing facilities
MSP structural steel comes with the guarantee of quality certifications from the NABL certified lab at its integrated steel plant.
Convenience of fabrication
MSP structural sections find a wide range of applications in the infrastructural, commercial, industrial, domestic and general engineering segments.
APPLICATIONS
All MSP products are made from quality raw materials and pass through rigorous quality checks. Thus, our products are highly customisable and are used for a wide range of segments.
General Engineering
Automobile Chasis (bus, trailer), Truck & Bus Body Members, Agricultural Equipment Bus Shelter Hoarding Structures
Infrastructural
Railway Platform Sheds, Pedestrian Walkovers, Foot Over-bridges, Signage-Supporting Structures, Energy Infrastructure (Electric Pole), Road Construction, Barrage Gate, Water Tank Tower
Domestic
Long Span Roofing, Grills, Showrooms, Window Reinforcement Structures, Building Commercial Houses, Handrails & Guardrails
Industrial
Equipment Establishment, Steel Stairs & Ladders, Factory/Plant Sheds, Security Goomty, Overhead Platforms, Pipe Racks, Conveyor Galleries & Trestles, Warehouse Structures

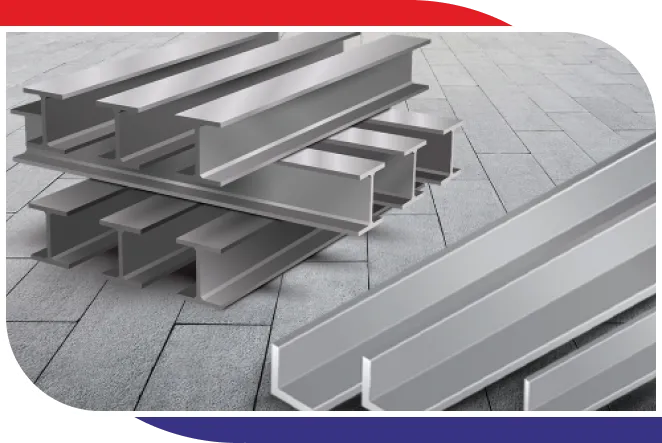

PRODUCT SPECIFICATIONS
Chemical Properties
Chemical
Symbol
% Limit
% Variation
Carbon
C
0.10-0.23
0.02
Manganese
Mn
0.40-1.5
0.05
Silicon
Si
0.40 Max
0.03
Sulphur
S
0.045 Max
0.005
Phosphorous
P
0.045 Max
0.005
| Chemical Properties | |||
| Chemical | Symbol | % Limit | % Variation |
| Carbon | C | 0.10-0.23 | 0.02 |
| Manganese | Mn | 0.40-1.5 | 0.05 |
| Silicon | Si | 0.40 Max | 0.03 |
| Sulphur | S | 0.045 Max | 0.005 |
| Phosphorous | P | 0.045 Max | 0.005 |
Physical Properties
Material will be supplied
in semi killed (A1) condition with limiting
carbon equivalent
0.42 Max
Minimum yield strength
250 MPa
Minimum tensile strength
410 MPa
Minimum % elongation
23
| Physical Properties | |
| Material will be supplied in semi killed (A1) condition with limiting carbon equivalent | 0.42 Max |
| Minimum yield strength | 250 MPa |
| Minimum tensile strength | 410 MPa |
| Minimum % elongation | 23 |
Normal Dimensions of Rolled
Structural Sections
BIS
IS 808 (2021)
Up to 200 mm depth
+4%, (-)1 %
Other section
+2.5%
| Normal Dimensions of Rolled Structural Sections | |
| BIS | IS 808 (2021) |
| Up to 200 mm depth | +4%, (-)1 % |
| Other section | +2.5% |
Normal Dimensions of Rolled
Structural Sections
10m to 13m
Customised
length could be supplied based on supply terms
and conditions
Length tolerance
+250mm
| Normal Dimensions of Rolled Structural Sections | |
| 10m to 13m | |
| Customised length could be supplied based on supply terms and conditions | |
| Length tolerance | +250mm |
Size Tolerance / Weight Tolerance
As per BIS standard -
IS
IS 1852 (1985)
| Size Tolerance / Weight Tolerance | |
| As per BIS standard - IS | IS 1852 (1985) |
Grade of Material
As per IS
IS 2062 (2021),Fe 250 A
Sections in
Cu-bearing steel and higher-grade material could
be supplied based on supply terms and conditions
| Grade of Material | |
| As per IS | IS 2062 (2021),Fe 250 A |
| Sections in Cu-bearing steel and higher-grade material could be supplied based on supply terms and conditions | |
End Finish
Mechanically
sheared/gas cut finish Supply in As Cut
Conditions
| End Finish |
| Mechanically sheared/gas cut finish Supply in As Cut Conditions |
Weldability
Weidable with
common M.S. electrodes without pre heating
| Weldability | |
| Weidable with common M.S. electrodes without pre heating | |
Marking / Identfication of Produc
Every Structural
Section is embossed (hot rolling) with size
detail, ISI mark and Co's logo/Mark along the
length at regular intervals
| Marking / Identfication of Produc |
| Every Structural Section is embossed (hot rolling) with size detail, ISI mark and Co's logo/Mark along the length at regular intervals |
Order information
While
placing an order, the following technical
information would be needed:
Size and length of each piece and quantity
Steel specification with grade/chemical
composition/physical properties
Test certificate requirement
Special, requirements if any
| Order information | |
| While
placing an order, the following technical
information would be needed: Size and length of each piece and quantity Steel specification with grade/chemical composition/physical properties Test certificate requirement Special, requirements if any |
|
ANGLE
Designation
Mass M
Area A
Dimensions
Properties
a
b
t
R1
R2
Cy
Cz
Izz
Iyy
a
Iuu(max)
Iyy(min)
rz
ry
ru
rv
Zz
Zy
Zpz
Zpy
It
Kg/m
x10mm²
mm
mm
mm
mm
mm
mm
mm
104mm4
104mm4
rad
104mm4
104mm4
mm
mm
mm
mm
103mm3
103mm3
103mm3
103mm3
103mm3
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
<50x50x3
2.34
2.99
50
50
3
6.0
0
13.4
13.4
7.21
7.21
0.79
11.4
3.01
15.5
15.5
19.6
10.0
1.97
1.97
3.53
3.55
0.087
<50x50x5
3.79
4.83
50
50
5
6.0
0
14.2
14.2
11.3
11.3
0.79
17.9
4.69
15.3
15.3
19.3
09.9
3.16
3.16
5.67
5.70
0.395
<50x50x6
4.49
5.72
50
50
6
6.0
0
14.6
14.6
13.2
13.2
0.79
20.8
5.48
15.2
15.2
19.1
09.8
3.72
3.72
6.69
6.71
0.676
<65x65x4
4.03
5.13
65
65
4
6.5
0
17.5
17.5
21.0
21.0
0.79
33.4
8.69
20.2
20.2
25.5
13.0
4.43
4.43
7.95
7.98
0.268
<65x65x5
4.98
6.34
65
65
5
6.5
0
17.9
17.9
25.7
25.7
0.79
40.8
10.6
20.1
20.1
25.4
12.9
5.45
5.45
9.8
9.83
0.520
<65x65x6
5.91
7.53
65
65
6
6.5
0
18.3
18.3
30.1
30.1
0.79
47.8
12.4
20.0
20.0
25.2
12.8
6.45
6.45
11.5
11.6
0.892
<75x75x5
5.77
7.36
75
75
5
7.5
0
20.4
20.4
40.0
40.0
0.79
63.6
16.5
23.3
23.3
29.4
15.0
7.30
7.30
13.2
13.2
0.604
<75x75x6
6.86
8.75
75
75
6
7.5
0
20.8
20.8
47.1
47.1
0.79
74.8
19.4
23.2
23.2
29.2
14.9
8.70
8.70
15.6
15.6
1.03
<75x75x8
9.00
11.4
75
75
8
7.5
0
21.6
21.6
60.3
60.3
0.79
95.7
24.9
22.9
22.9
28.9
14.7
11.3
11.3
20.3
20.4
2.42
<75x75x10
11.07
14.1
75
75
10
7.5
0
22.3
22.3
72.6
72.6
0.79
114
30.3
22.7
22.7
28.5
14.7
13.8
13.8
24.8
24.9
4.66
<90x90x6
8.32
10.6
90
90
6
8.5
0
24.5
24.5
83.0
83.0
0.79
131
34.2
28.0
28.0
35.3
18.0
12.7
12.7
22.8
22.8
1.25
<90x90x8
10.92
13.9
90
90
8
8.5
0
25.3
25.3
107
107
0.79
170
44.1
27.7
27.7
35.0
17.8
16.5
16.5
29.7
29.8
2.93
<90x90x10
13.47
17.1
90
90
10
8.5
0
26.0
26.0
129
129
0.79
205
53.6
27.5
27.5
34.6
17.7
20.2
20.2
36.4
36.5
5.66
<100x100x6
9.26
11.8
100
100
6
8.5
0
27.0
27.0
115
115
0.79
182
47.2
31.2
31.2
39.4
200
15.7
15.7
28.3
28.3
1.39
<100 x 100 x 8
12.18
15.5
100
100
8
8.5
0
27.8
27.8
148
148
0.79
236
61
31
31
39
198
20.6
20.6
37
37.1
3.27
<100 x 100 x 10
15.04
19.1
100
100
10
8.5
0
28.5
28.5
180
180
0.79
286
74.3
30.7
30.7
38.7
197
25.3
25.3
45.4
45.5
6.33
<130 x 130 x 8
15.92
20.2
130
130
8
10.0
4.8
35.0
35.0
330
330
0.79
526
135
40.4
40.4
51
258
34.8
34.8
63
63.1
4.30
<130x130x10
19.72
25.1
130
130
10
10.0
4.8
35.9
35.9
405
405
0.79
644
165
40.2
40.2
50.7
257
43.1
43.1
77.8
77.9
8.33
<130x130x12
23.45
29.8
130
130
12
10.0
4.8
36.7
36.7
476
476
0.79
757
195
39.9
39.9
50.4
256
51
51
92.2
92.3
14.2
<150 x 150 x 10
22.93
29.2
150
150
10
12.0
4.8
40.8
40.8
633
633
0.79
1000
259
46.6
46.6
58.7
298
58
58
104
104
9.66
<150 x 150 x 12
27.29
34.7
150
150
12
12.0
4.8
41.6
41.6
746
746
0.79
1180
305
46.3
46.3
58.4
296
68.8
68.8
124
124
16.5
| Designation | Mass M | Area A | Dimensions | Properties | ||||||||||||||||||||
| a | b | t | R1 | R2 | Cy | Cz | Izz | Iyy | a | Iuu(max) | Iyy(min) | rz | ry | ru | rv | Zz | Zy | Zpz | Zpy | It | ||||
| Kg/m | x10mm² | mm | mm | mm | mm | mm | mm | mm | 104mm4 | 104mm4 | rad | 104mm4 | 104mm4 | mm | mm | mm | mm | 103mm3 | 103mm3 | 103mm3 | 103mm3 | 103mm3 | ||
| (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) | (11) | (12) | (13) | (14) | (15) | (16) | (17) | (18) | (19) | (20) | (21) | (22) | (23) | (24) | |
| <50x50x3 | 2.34 | 2.99 | 50 | 50 | 3 | 6.0 | 0 | 13.4 | 13.4 | 7.21 | 7.21 | 0.79 | 11.4 | 3.01 | 15.5 | 15.5 | 19.6 | 10.0 | 1.97 | 1.97 | 3.53 | 3.55 | 0.087 | |
| <50x50x5 | 3.79 | 4.83 | 50 | 50 | 5 | 6.0 | 0 | 14.2 | 14.2 | 11.3 | 11.3 | 0.79 | 17.9 | 4.69 | 15.3 | 15.3 | 19.3 | 09.9 | 3.16 | 3.16 | 5.67 | 5.70 | 0.395 | |
| <50x50x6 | 4.49 | 5.72 | 50 | 50 | 6 | 6.0 | 0 | 14.6 | 14.6 | 13.2 | 13.2 | 0.79 | 20.8 | 5.48 | 15.2 | 15.2 | 19.1 | 09.8 | 3.72 | 3.72 | 6.69 | 6.71 | 0.676 | |
| <65x65x4 | 4.03 | 5.13 | 65 | 65 | 4 | 6.5 | 0 | 17.5 | 17.5 | 21.0 | 21.0 | 0.79 | 33.4 | 8.69 | 20.2 | 20.2 | 25.5 | 13.0 | 4.43 | 4.43 | 7.95 | 7.98 | 0.268 | |
| <65x65x5 | 4.98 | 6.34 | 65 | 65 | 5 | 6.5 | 0 | 17.9 | 17.9 | 25.7 | 25.7 | 0.79 | 40.8 | 10.6 | 20.1 | 20.1 | 25.4 | 12.9 | 5.45 | 5.45 | 9.8 | 9.83 | 0.520 | |
| <65x65x6 | 5.91 | 7.53 | 65 | 65 | 6 | 6.5 | 0 | 18.3 | 18.3 | 30.1 | 30.1 | 0.79 | 47.8 | 12.4 | 20.0 | 20.0 | 25.2 | 12.8 | 6.45 | 6.45 | 11.5 | 11.6 | 0.892 | |
| <75x75x5 | 5.77 | 7.36 | 75 | 75 | 5 | 7.5 | 0 | 20.4 | 20.4 | 40.0 | 40.0 | 0.79 | 63.6 | 16.5 | 23.3 | 23.3 | 29.4 | 15.0 | 7.30 | 7.30 | 13.2 | 13.2 | 0.604 | |
| <75x75x6 | 6.86 | 8.75 | 75 | 75 | 6 | 7.5 | 0 | 20.8 | 20.8 | 47.1 | 47.1 | 0.79 | 74.8 | 19.4 | 23.2 | 23.2 | 29.2 | 14.9 | 8.70 | 8.70 | 15.6 | 15.6 | 1.03 | |
| <75x75x8 | 9.00 | 11.4 | 75 | 75 | 8 | 7.5 | 0 | 21.6 | 21.6 | 60.3 | 60.3 | 0.79 | 95.7 | 24.9 | 22.9 | 22.9 | 28.9 | 14.7 | 11.3 | 11.3 | 20.3 | 20.4 | 2.42 | |
| <75x75x10 | 11.07 | 14.1 | 75 | 75 | 10 | 7.5 | 0 | 22.3 | 22.3 | 72.6 | 72.6 | 0.79 | 114 | 30.3 | 22.7 | 22.7 | 28.5 | 14.7 | 13.8 | 13.8 | 24.8 | 24.9 | 4.66 | |
| <90x90x6 | 8.32 | 10.6 | 90 | 90 | 6 | 8.5 | 0 | 24.5 | 24.5 | 83.0 | 83.0 | 0.79 | 131 | 34.2 | 28.0 | 28.0 | 35.3 | 18.0 | 12.7 | 12.7 | 22.8 | 22.8 | 1.25 | |
| <90x90x8 | 10.92 | 13.9 | 90 | 90 | 8 | 8.5 | 0 | 25.3 | 25.3 | 107 | 107 | 0.79 | 170 | 44.1 | 27.7 | 27.7 | 35.0 | 17.8 | 16.5 | 16.5 | 29.7 | 29.8 | 2.93 | |
| <90x90x10 | 13.47 | 17.1 | 90 | 90 | 10 | 8.5 | 0 | 26.0 | 26.0 | 129 | 129 | 0.79 | 205 | 53.6 | 27.5 | 27.5 | 34.6 | 17.7 | 20.2 | 20.2 | 36.4 | 36.5 | 5.66 | |
| <100x100x6 | 9.26 | 11.8 | 100 | 100 | 6 | 8.5 | 0 | 27.0 | 27.0 | 115 | 115 | 0.79 | 182 | 47.2 | 31.2 | 31.2 | 39.4 | 200 | 15.7 | 15.7 | 28.3 | 28.3 | 1.39 | |
| <100 x 100 x 8 | 12.18 | 15.5 | 100 | 100 | 8 | 8.5 | 0 | 27.8 | 27.8 | 148 | 148 | 0.79 | 236 | 61 | 31 | 31 | 39 | 198 | 20.6 | 20.6 | 37 | 37.1 | 3.27 | |
| <100 x 100 x 10 | 15.04 | 19.1 | 100 | 100 | 10 | 8.5 | 0 | 28.5 | 28.5 | 180 | 180 | 0.79 | 286 | 74.3 | 30.7 | 30.7 | 38.7 | 197 | 25.3 | 25.3 | 45.4 | 45.5 | 6.33 | |
| <130 x 130 x 8 | 15.92 | 20.2 | 130 | 130 | 8 | 10.0 | 4.8 | 35.0 | 35.0 | 330 | 330 | 0.79 | 526 | 135 | 40.4 | 40.4 | 51 | 258 | 34.8 | 34.8 | 63 | 63.1 | 4.30 | |
| <130x130x10 | 19.72 | 25.1 | 130 | 130 | 10 | 10.0 | 4.8 | 35.9 | 35.9 | 405 | 405 | 0.79 | 644 | 165 | 40.2 | 40.2 | 50.7 | 257 | 43.1 | 43.1 | 77.8 | 77.9 | 8.33 | |
| <130x130x12 | 23.45 | 29.8 | 130 | 130 | 12 | 10.0 | 4.8 | 36.7 | 36.7 | 476 | 476 | 0.79 | 757 | 195 | 39.9 | 39.9 | 50.4 | 256 | 51 | 51 | 92.2 | 92.3 | 14.2 | |
| <150 x 150 x 10 | 22.93 | 29.2 | 150 | 150 | 10 | 12.0 | 4.8 | 40.8 | 40.8 | 633 | 633 | 0.79 | 1000 | 259 | 46.6 | 46.6 | 58.7 | 298 | 58 | 58 | 104 | 104 | 9.66 | |
| <150 x 150 x 12 | 27.29 | 34.7 | 150 | 150 | 12 | 12.0 | 4.8 | 41.6 | 41.6 | 746 | 746 | 0.79 | 1180 | 305 | 46.3 | 46.3 | 58.4 | 296 | 68.8 | 68.8 | 124 | 124 | 16.5 | |
CHANNELS
Designation
Mass M
Area A
Dimensions
Properties
D
B
t
T
Slope(a)
R1
R2
Cy
Izz
Iyy
rz
ry
Zzz
Zyy
Zpz
Zpy
It
Iw
Kg/m
x10mm²
mm
mm
mm
mm
degree
mm
mm
mm
104mm4
104mm4
mm
mm
103mm3
103mm3
103mm3
103mm3
104mm4
106mm6
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
MC 75
7.14
9.08
75
40
4.8
7.5
8
8.5
2.4
13.2
78.2
12.7
39.4
11.8
20.9
4.8
25
9
1.59
132
MC100
9.56
12.1
100
50
5
7.7
96
9
2.4
15.4
191
26.3
39.7
14.7
38.4
7.6
45.2
14.8
2.25
512
MC125
13.1
16.6
125
65
5.3
8.2
96
9.5
2.4
19.5
424
60.3
50.5
19
67.9
13.3
78.9
26
3.59
1900
MC150
16.8
21.3
150
75
5.7
9
96
10
2.4
22
786
102
60.8
21.9
104
19.3
121
38.1
5.45
4700
MC200
22.3
28.4
200
75
6.2
11.4
96
11
3.2
22
1820
139
80.2
22.1
182
26.2
212
51.2
9.98
11000
MC250
30.6
38.9
250
80
7.2
14.1
96
12
3.2
23
3820
218
99.2
23.7
306
38.2
358
74.2
18.9
26800
MC300
36.3
46.2
300
90
7.8
13.6
96
13
3.2
23.5
6400
311
117
2.59
427
46.8
501
91.9
21.7
57500
| Designation | Mass M | Area A | Dimensions | Properties | ||||||||||||||||||
| D | B | t | T | Slope(a) | R1 | R2 | Cy | Izz | Iyy | rz | ry | Zzz | Zyy | Zpz | Zpy | It | Iw | |||||
| Kg/m | x10mm² | mm | mm | mm | mm | degree | mm | mm | mm | 104mm4 | 104mm4 | mm | mm | 103mm3 | 103mm3 | 103mm3 | 103mm3 | 104mm4 | 106mm6 | |||
| (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) | (11) | (12) | (13) | (14) | (15) | (16) | (17) | (18) | (19) | (20) | (21) | ||
| MC 75 | 7.14 | 9.08 | 75 | 40 | 4.8 | 7.5 | 8 | 8.5 | 2.4 | 13.2 | 78.2 | 12.7 | 39.4 | 11.8 | 20.9 | 4.8 | 25 | 9 | 1.59 | 132 | ||
| MC100 | 9.56 | 12.1 | 100 | 50 | 5 | 7.7 | 96 | 9 | 2.4 | 15.4 | 191 | 26.3 | 39.7 | 14.7 | 38.4 | 7.6 | 45.2 | 14.8 | 2.25 | 512 | ||
| MC125 | 13.1 | 16.6 | 125 | 65 | 5.3 | 8.2 | 96 | 9.5 | 2.4 | 19.5 | 424 | 60.3 | 50.5 | 19 | 67.9 | 13.3 | 78.9 | 26 | 3.59 | 1900 | ||
| MC150 | 16.8 | 21.3 | 150 | 75 | 5.7 | 9 | 96 | 10 | 2.4 | 22 | 786 | 102 | 60.8 | 21.9 | 104 | 19.3 | 121 | 38.1 | 5.45 | 4700 | ||
| MC200 | 22.3 | 28.4 | 200 | 75 | 6.2 | 11.4 | 96 | 11 | 3.2 | 22 | 1820 | 139 | 80.2 | 22.1 | 182 | 26.2 | 212 | 51.2 | 9.98 | 11000 | ||
| MC250 | 30.6 | 38.9 | 250 | 80 | 7.2 | 14.1 | 96 | 12 | 3.2 | 23 | 3820 | 218 | 99.2 | 23.7 | 306 | 38.2 | 358 | 74.2 | 18.9 | 26800 | ||
| MC300 | 36.3 | 46.2 | 300 | 90 | 7.8 | 13.6 | 96 | 13 | 3.2 | 23.5 | 6400 | 311 | 117 | 2.59 | 427 | 46.8 | 501 | 91.9 | 21.7 | 57500 | ||
MS ROUND
Size in mm
Wt/Kg/Mtr.
Size in mm
Wt/Kg/Mtr.
30
5.55
125
96.34
32
6.31
140
120.84
36
7.99
160
157.84
38
8.90
180
199.76
40
9.86
200
246.62
| Size in mm | Wt/Kg/Mtr. | Size in mm | Wt/Kg/Mtr. |
| 30 | 5.55 | 125 | 96.34 |
| 32 | 6.31 | 140 | 120.84 |
| 36 | 7.99 | 160 | 157.84 |
| 38 | 8.90 | 180 | 199.76 |
| 40 | 9.86 | 200 | 246.62 |
BEAM
I-BEAM
<!------->
Designation
Mass M
Area A
Dimensions
Properties
D
B
t
T
Flang Slope(a)
R1
R2
Izz
Iyy
rz
ry
Zzz
Zyy
Zpz
Zpy
It
Iw
Kg/m
x102 mm²
mm
mm
mm
mm
degree
mm
mm
104mm4
104mm4
mm
mm
103mm3
103mm3
103mm3
103mm3
104mm4
106mm6
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
MB 100
8.95
11.4
100
50
4.7
7.0
98.0
9.0
4.5
182
12.5
39.9
10.4
36.4
5.01
42.6
8.58
2.15
315
MB125
13.35
17.0
125
70
5.0
8.0
98.0
9.0
4.5
445
38.4
51.1
15.0
71.3
10.9
82.1
18.4
3.99
1560
MB150
14.96
19.00
150
75
5.0
8.0
98.0
9.0
4.5
718
46.7
61.3
15.6
95.7
12.4
109
21.0
4.36
2830
MB200
24.17
30.8
200
100
5.7
10.0
98.0
11.0
5.5
2110
136
82.8
21.0
211
27.3
240
46.0
10.7
15000
MB250
37.30
47.5
250
125
6.9
12.5
98.0
13.0
6.5
5130
334
103
26.5
410
53.5
465
89.7
25.5
57300
MB300
46.02
58.6
300
140
7.7
13.1
98.0
14.0
7.0
8990
486
123
28.7
599
69.4
681
117
34.7
123000
MB400
61.55
78.4
400
140
8.9
16.00
98.0
14.0
7.0
20400
622
161
28.1
1020
88.8
1170
149
59.6
269000
| Designation | Mass M | Area A | Dimensions | Properties | |||||||||||||||||
| D | B | t | T | Flang Slope(a) | R1 | R2 | Izz | Iyy | rz | ry | Zzz | Zyy | Zpz | Zpy | It | Iw | |||||
| Kg/m | x102 mm² | mm | mm | mm | mm | degree | mm | mm | 104mm4 | 104mm4 | mm | mm | 103mm3 | 103mm3 | 103mm3 | 103mm3 | 104mm4 | 106mm6 | |||
| (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) | (11) | (12) | (13) | (14) | (15) | (16) | (17) | (18) | (19) | (20) | ||
| MB 100 | 8.95 | 11.4 | 100 | 50 | 4.7 | 7.0 | 98.0 | 9.0 | 4.5 | 182 | 12.5 | 39.9 | 10.4 | 36.4 | 5.01 | 42.6 | 8.58 | 2.15 | 315 | ||
| MB125 | 13.35 | 17.0 | 125 | 70 | 5.0 | 8.0 | 98.0 | 9.0 | 4.5 | 445 | 38.4 | 51.1 | 15.0 | 71.3 | 10.9 | 82.1 | 18.4 | 3.99 | 1560 | ||
| MB150 | 14.96 | 19.00 | 150 | 75 | 5.0 | 8.0 | 98.0 | 9.0 | 4.5 | 718 | 46.7 | 61.3 | 15.6 | 95.7 | 12.4 | 109 | 21.0 | 4.36 | 2830 | ||
| MB200 | 24.17 | 30.8 | 200 | 100 | 5.7 | 10.0 | 98.0 | 11.0 | 5.5 | 2110 | 136 | 82.8 | 21.0 | 211 | 27.3 | 240 | 46.0 | 10.7 | 15000 | ||
| MB250 | 37.30 | 47.5 | 250 | 125 | 6.9 | 12.5 | 98.0 | 13.0 | 6.5 | 5130 | 334 | 103 | 26.5 | 410 | 53.5 | 465 | 89.7 | 25.5 | 57300 | ||
| MB300 | 46.02 | 58.6 | 300 | 140 | 7.7 | 13.1 | 98.0 | 14.0 | 7.0 | 8990 | 486 | 123 | 28.7 | 599 | 69.4 | 681 | 117 | 34.7 | 123000 | ||
| MB400 | 61.55 | 78.4 | 400 | 140 | 8.9 | 16.00 | 98.0 | 14.0 | 7.0 | 20400 | 622 | 161 | 28.1 | 1020 | 88.8 | 1170 | 149 | 59.6 | 269000 | ||
H-BEAM
Section Description
Dimension (h)x(b)x(tw) mm
Section Weight (w) (Kg/ Mtrs)
Section Area (a) (cm²)
Moment Inertia of (cm4)
Moment of Section (cm³)
Izz
Iyy
Izz
Izz
RSJ 116
116x100x8.5
23
29.3
643.8
143.5
111
28.7
RSJ 152
152x152x7.9
37.1
47.4
1970
700
259
91.9
| Section Description | Dimension (h)x(b)x(tw) mm | Section Weight (w) (Kg/ Mtrs) | Section Area (a) (cm²) | Moment Inertia of (cm4) | Moment of Section (cm³) | |||||||||||||||||
| Izz | Iyy | Izz | Izz | |||||||||||||||||||
| RSJ 116 | 116x100x8.5 | 23 | 29.3 | 643.8 | 143.5 | 111 | 28.7 | |||||||||||||||
| RSJ 152 | 152x152x7.9 | 37.1 | 47.4 | 1970 | 700 | 259 | 91.9 | |||||||||||||||
PROCESS QMS
Process Quality management is at our core when it comes to manufacturing our wide range of products. A rigorous Quality Management System conforming to ISO 9001:2015 standards helps us maintain a benchmark in production quality. We are equally committed to the environment and hence comply with Environment Management Norms (14001:2015). Our workforce dedicatedly follows the Health & Safety Management System (45001:2018), creating an innocuous working environment for all. Our products are certified under BIS norms and are tested at our NABL-certified lab.
PROMOTIONS
GREEN PRO CERTIFICATE
TESTIMONIALS
FAQs
1. What structural steel
products does MSP Structurals offer?
MSP
Structurals offers a range of structural steel products
including:
1. H & I-Beams
2. Angles
3. MS Round Bars
4. Channels
5. Dowel Bars
These products are designed for diverse structural and construction
applications.
2. Are MSP Structural
products compliant with BIS standards?
Yes, MSP Structural products are manufactured in compliance with BIS 2062:2011 standards, ensuring adherence to quality specifications and structural requirements.
3. Are customized sizes
available for MSP Structurals products?
Yes, MSP Structurals offers customised cut-to-length sizes as per project and customer requirements.
4. What sizes are available
in MSP H & I-Beams?
MSP H &
I-Beams are available in:
1. H-Beams RSJ 116x100 & 152x152
2. I-Beams MB100 to MB300
These products are designed for fabrication and structural
applications.
5. What are the available
sizes for MSP Angles?
MSP Angles
are available in sizes ranging from:
1. 40x40x5 mm to 150x150x12 mm.
6. What are MSP Channels
used for?
MSP Channels are designed to enhance the load-bearing capacity of structures and are widely used in constructing steel frames.
7. What makes MSP MS Round
Bars suitable for industrial applications?
MSP MS Round Bars are high on tensile strength and are used in applications such as pumps, shafts, and electric stations.
8. What are the applications
of MSP Dowel Bars?
MSP Dowel Bars are used in laying roads and pavements, helping provide greater compressive strength to concrete.
9. Does MSP Structurals
provide delivery support for projects?
Yes, MSP Structurals offers 24x7 delivery support for structural steel product requirements.
10. Why choose MSP
Structurals for construction and fabrication requirements?
MSP Structurals combines BIS-compliant manufacturing, customised sizes, high tensile strength, structural reliability, and 24x7 delivery support to meet diverse construction and fabrication requirements.
